The 180°C water temperature controller is an industrial equipment that uses water as the heat transfer medium and achieves high-precision temperature control. Its core technology lies in raising the boiling point of water to 180°C through a closed-circuit circulation system and a high-pressure design, so as to meet the requirements of high-temperature processes.
Item No :
LEWT-30-24Order(MOQ) :
1Payment :
EXW/FOB/CIF/FCA/DPU/DDUProduct Origin :
CHINAColor :
CustomizableShipping Port :
SHANGHAI/NANJINGLead Time :
15Weight :
95

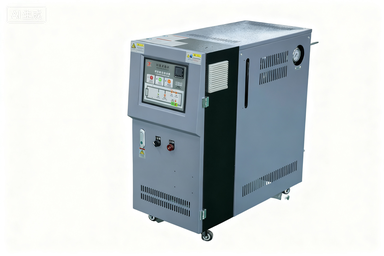

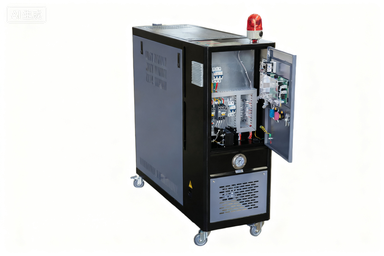

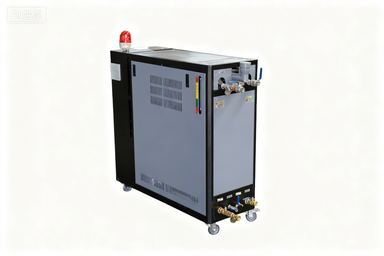

LEWT Series Water Temperature Control Unit
The LEWT Series high-temperature water temperature controller, It uses water as the heat transfer medium and rapidly heats the water via a built-in electric heating tube.
With the help of a circulation pump, the heated high-temperature water (up to 180°C) is delivered to temperature-controlled equipment (such as molds and reaction kettles).
A temperature sensor monitors the water temperature in real time. When the temperature reaches the set value, the system automatically stops heating; when the temperature drops, heating is restarted, achieving precise temperature control within a range of ±1°C.
Water Temperature Control Unit Working Principle

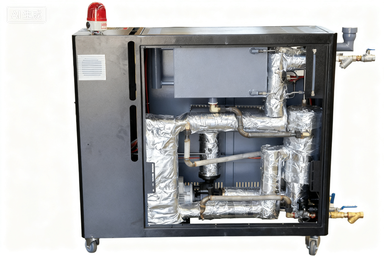

The high-temperature and high-pressure hot water is delivered by a circulation pump to temperature-controlled equipment (such as molds and reaction kettles) for heat exchange.After completing the heat exchange, the water flows back to the water temperature machine, where it is reheated and its temperature is adjusted, forming a closed-loop cycle.The temperature control system monitors the water temperature in real time and maintains the water temperature stably at the set value of 180°C by adjusting the heating power.
High-Temperature Capability
It breaks through the limitation of conventional water temperature controllers (≤100°C). By increasing the system pressure (approximately 1.0MPa), the boiling point of water is raised to 180°C, meeting the requirements of high-temperature processes.
Precise Temperature Control
It adopts a PID temperature control system, which features small temperature fluctuation. This ensures stable temperature during the production process and improves the consistency of product quality.
Environmental Protection & Energy Efficiency
Using water as the heat transfer medium, it causes no oil pollution. Moreover, water has high heat transfer efficiency—compared with oil temperature controllers, it heats up faster and consumes less energy.
Safety Protection Function
Features
Temperature control range:nlet watertemperature+15℃~150℃ /180℃
Return water temperature gauge
Heating power change-over function
Start-up automatic exhaust function
Hot water BY-PASS pressure relief loop
Stainless steel pipeline to reduce pipe resistance and rust deposit
Brands of electrical appliances:SIEMENS.OMRON.FUJI.ABB.
SchneiderDisconnecting control box for electrical equipment to prolong service life if theelectrical equipment
Multi-point temperature control unit(customized)
Water pump horsepower and heating power(customized)
Explosion-proof equipment(optional)Air blowing and return water function(optional)
Negative pressure system operation(optional)
Instant cooling shut-down function(optional)
RS485 communication function, realization of automatic management(optional)
Control method:imported microcomputer or PLC (optional) control
Perfect safety protection, fault display, maintenance without professionals
Model And Technical Parameter
| Model | Unit | LEWT-10 | LEWT-20 | LEWT-30 | LEWT-50 | LEWT-75 | LEWT-100 |
| Temp. control range | Inlet water temperature +15-180℃ | ||||||
| Temp. accuracy | PID±1℃ | ||||||
| Power | AC3Φ380V 50HZ 3P+E(5M) | ||||||
| Heat transfer medium | Water | ||||||
| Cooling methad | Indirect cooling | ||||||
| Heating capacity | KW | 9/12 | 12/18 | 24/30 | 36/45 | 60/75 | 96/120 |
| Pump power | HP | 1 | 2 | 3 | 5 | 7.5 | 10 |
| Max.pump flow | L/min | 95 | 153 | 235 | 315 | 415 | 500 |
| Max.pump pressure | Bar | 6 | 6 | 6 | 12 | 12 | 12 |
| Power supplier | KW | 6/11 | 14/20 | 27/33 | 40/49 | 65/81 | 96/120 |
| Cooling water pipe | Inch | 1/2 | 1/2 | 1/2 | 3/4 | 1 | 1 |
| Circulation oil pipe | Inch | 1 | 1 | 1.2 | 1.5 | 2 | 2.5 |
| Dimension（mm） | L | 755 | 755 | 1100 | 1200 | 1200 | 1670 |
| W | 360 | 360 | 420 | 500 | 500 | 550 | |
| H | 850 | 850 | 1100 | 1260 | 1260 | 1360 | |
| Weight | kg | 75 | 85 | 95 | 110 | 150 | 200 |
Note: The specification is subject to change due to product improvement without prior notice.
Process Flow Diagram
Application Case
Our water temperature control unit is widely used across various industrial applications, including casting moulds, rubber vulcanization, wheel temperature control, hot press technology, carbon fiber production, and chemical reactions. It ensures precise temperature management, improving production efficiency and product quality in these processes.
