Industrial Stainless Steel Air-cooled Box Chiller Water Cooling Unit Manufacturer
We are a specialized manufacturer dedicated to the R&D, production, and global distribution of industrial stainless steel air-cooled box chillers and water cooling units. With over 20 years of expertise in industrial refrigeration, we deliver robust, high-efficiency cooling solutions tailored for precision manufacturing, chemical processing, electroplating, pharmaceuticals, laser equipment, and various heavy-duty industrial applications.
Item No :
BS-10ASTOrder(MOQ) :
1Payment :
EXW/FOB/CIF/FCA/DPU/DDUProduct Origin :
CHINAColor :
CustomizableShipping Port :
SHANGHAI/NANJINGLead Time :
20Weight :
400KG
Air cooled Screw chiller Working Principle
High-Efficiency Heat Exchange System
Key Notes on Technical Terminology:
PLC+HMI: Abbreviation for "Programmable Logic Controller + Human-Machine Interface", a standard industrial control configuration, so the acronym is retained for clarity.
PID: Full name "Proportional-Integral-Derivative", a widely used automatic control algorithm; the acronym is commonly used in international technical documents.
Refrigerant Codes (R22/R407C/R134a): Industry-unified designations for refrigerants, which are consistent across global technical standards and do not require additional translation.
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are a trading company under Jiangsu Rongyida Co., Ltd., which owns a strong manufacturing base for temperature control equipment. This allows us to provide both factory-direct pricing and customized technical solutions.
Q2: How can I choose the right temperature control equipment for my factory?
A2: Just send us the following information:
Required temperature range;Heating/cooling medium;Power supply voltage;Industry/application (e.g., plastic, chemical, food, etc.)
Our engineers will recommend the best model for you within 24 hours.
Q3: What is your delivery time?
A3: Usually 7–15 working days for standard models and 20–30 days for customized systems. We will confirm exact lead time after order details are finalized.
Model And Technical Parameter
| Model | Unit | 100ASE | 140ASE | 180ASE | 200ASE | 230ASE | 260ASE |
| Temp. control range | Inlet water temperature 7-25℃ | ||||||
| Temp. accuracy | PID±1℃ | ||||||
| Power | AC3Φ380V 50HZ 3P+E(5M) | ||||||
| Heat transfer medium | Water | ||||||
| Cooling methad | Indirect cooling | ||||||
| Refrigeration capacity | KW | 87 | 117 | 155 | 165 | 200 | 224 |
| Pump power | HP | 35 | 45 | 60 | 70 | 80 | 90 |
| Max.pump flow | L/min | 95 | 165 | 236 | 315 | 385 | 415 |
| Max.pump pressure | Bar | 2 | 2.2 | 2.4 | 2.6 | 2.8 | 3 |
| Condenser(Air Volume) | m³/h | 39000 | 45000 | 57000 | 64800 | 76000 | 93000 |
| Evaporator(Water Flow) | m³/h | 15 | 20 | 27 | 28 | 34 | 39 |
| Single Fan Power | KW | 0.42 | 0.55 | 0.8 | 0.85 | 0.8 | 1.1 |
| Dimension（mm） | L | 2500 | 3000 | 3300 | 3000 | 3000 | 3000 |
| W | 1200 | 1300 | 1300 | 1800 | 2000 | 2300 | |
| H | 2250 | 2250 | 2450 | 2350 | 2300 | 2300 | |
| Weight | kg | 1820 | 2000 | 2200 | 2450 | 2600 | 2800 |
Remarks：
1.The table cooling conditions:chilled water inlet temperature 12℃,the outlet temperature 7℃,air temperature 35℃；
2.Power Supoly:3P-380V-50Hz,allowing voltage fluctuation ±10%,Allow the voltage difference ±2%；
3.The above data refer to refrigerant R22,if you need refrigerant R407 or other refrigerants,please contract;
4.Specification parameters and dimensions are subject to change due to product improvement without notice.
000
Process Flow Diagram
Application Case
Our Air cooled screw chiller is widely used across various industrial applications, including casting moulds, rubber vulcanization, wheel temperature control, hot press technology, carbon fiber production, and chemical reactions. It ensures precise temperature management, improving production efficiency and product quality in these processes.
Our Partner
Customized Solutions for Your Business, Contact Us Quickly!
Industrial refrigeration equipment with temperature control is mainly used to provide stable low-temperature cooling media for various industrial production processes. It is particularly suitable for hydrogen production processes that are sensitive to temperature fluctuations and have strict water quality requirements.
Read More
The water cooled packaged chiller is an industrial equipment that achieves efficient refrigeration through a water-cooling cycle, and is widely used in scenarios requiring precise temperature control.
Read More
The -5℃ water-cooled box-type chiller is an integrated box-type equipment dedicated to providing low-temperature cooling water below 5℃, and it is mainly used in industrial production scenarios that require low-temperature control.
Read More

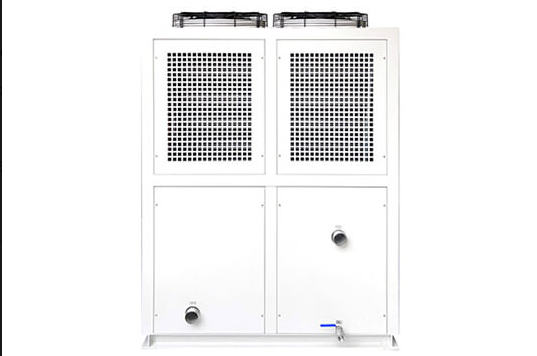

The air cooled packaged chiller is an integrated chilled water equipment that uses air as the cooling medium. Its core function is to provide low-temperature chilled water for industrial production or commercial scenarios.
