A 400°C high-temperature oil temperature controller is an industrial equipment that can heat heat transfer oil to 400°C and control the temperature with high precision, and it has important applications in numerous industrial fields.
Item No :
LDDC-18-18Order(MOQ) :
1Payment :
EXW/FOB/CIF/FCA/DPU/DDUProduct Origin :
CHINAColor :
CustomizableShipping Port :
SHANGHAI/NANJINGLead Time :
22Weight :
120KG

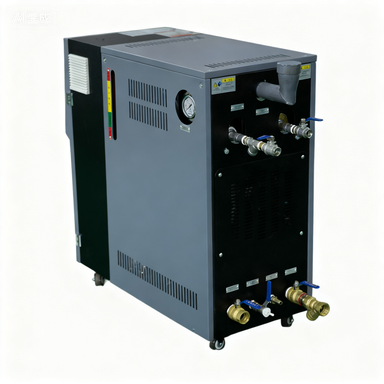

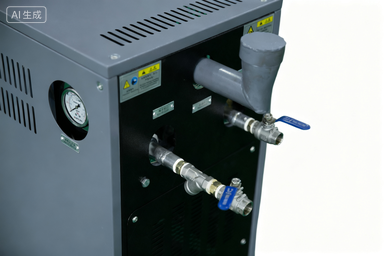

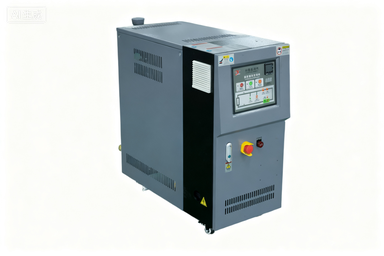

LDDC Series Oil Temperature Control Unit
The LDDC Series 400℃ oil temperature controller，the high-temperature oil pump draws the heat transfer oil out of the oil tank. After the oil is heated to the required temperature by the heater, it is delivered to heat-consuming equipment to provide heat. Subsequently, the oil is returned to the system for reheating, forming a circulation loop.
Oil Temperature Control Unit Working Principle
Rapid Heating:
Adopting imported high-temperature pump units and high-efficiency heating modules, it has a heating rate of up to 5°C/min. This enables the heat transfer oil to be quickly heated to the set temperature, reducing preheating time and improving production efficiency.
Excellent Uniformity:
Through a circulation method, high-temperature oil is circulated through pipes arranged in the heating area. This achieves uniform heating of the object being heated and ensures that every part receives the same amount of thermal energy.
Safety and Reliability:
It is equipped with multiple safety protection devices, such as low-pressure protection, high-pressure protection, over-temperature protection, ultra-high-temperature power-off protection, nitrogen sealing protection, and automatic pressure relief protection for excessive pressure. These devices ensure the safety of operators and the equipment.
Energy Efficiency:
It uses national standard carbon steel integrated pipes, which reduce pipe resistance and carbon deposition. At the same time, the optimized system layout and thermal insulation materials minimize heat loss, resulting in an energy saving of more than 30% compared with traditional heating methods.
Safety Protection Function
Features
Model And Technical Parameter
| Model | Unit | LOS-05 | LOS-10 | LOS-20 | LOS-30 | LOS-50 | LOS-75 |
| Temp. control range | Inlet water temperature +15-300℃ | ||||||
| Temp. accuracy | PID±1℃ | ||||||
| Power | AC3Φ380V 50HZ 3P+E(5M) | ||||||
| Heat transfer medium | Conduction oil | ||||||
| Cooling methad | Indirect cooling | ||||||
| Heating capacity | KW | 18 | 36 | 48 | 18+18 | 36+36 | 48+48 |
| Pump power | HP | 0.55 | 1.1 | 2.8 | 0.55+0.55 | 1.1+1.1 | 2.8+2.8 |
| Max.pump flow | L/min | 30 | 60 | 100 | 30+30 | 60+60 | 100+100 |
| Max.pump pressure | Bar | 4 | 4 | 6 | 4+4 | 4+4 | 6+6 |
| Power supplier | KW | 19 | 38 | 51 | 38 | 75 | 102 |
| Expansion tank capacity | L | 8 | 8 | 35 | 35 | 50 | 100 |
| Cooling water pipe | Inch | 1/2 | 1/2 | 3/4 | 1 | 1 | 1-1/4 |
| Circulation oil pipe | Inch | 1 | 1 | 1-1/2 | 1*2 | 1*2 | 1-1/2*2 |
| Dimension（mm） | L | 1110 | 1200 | 1200 | 1670 | 1670 | 1670 |
| W | 420 | 500 | 500 | 600 | 600 | 650 | |
| H | 1110 | 1260 | 1260 | 1360 | 1360 | 1410 | |
| Weight | kg | 120 | 150 | 180 | 220 | 280 | 340 |
Note: The specification is subject to change due to product improvement without prior notice.
Process Flow Diagram
FAQ
Q1:What Preparations Are Required Before Starting the Equipment?
A1:Check the liquid level of the heat transfer oil to ensure it is within the specified scale range. If the level is insufficient, promptly replenish it with heat transfer oil suitable for high temperatures.
Confirm that the oil circuit valves are in the open state and that there is no blockage or leakage.
Check whether the power supply and grounding are normal and ensure there is no looseness in the wiring.
Verify that the safety protection devices (such as explosion-proof valves and over-temperature alarms) are in an effective state.
If the equipment is restarted after a long period of shutdown, it is necessary to first drain all the air in the oil circuit.
Q2:Are the Sealing Components of the Equipment Prone to Wear at 400°C? What Is the Replacement Cycle?
Application Case
Our oil temperature control unit is widely used across various industrial applications, including casting moulds, rubber vulcanization, wheel temperature control, hot press technology, carbon fiber production, and chemical reactions. It ensures precise temperature management, improving production efficiency and product quality in these processes.
Our Partner
Customized Solutions for Your Business, Contact Us Quickly!

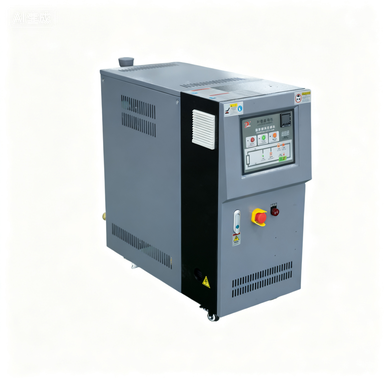

The LEOT Series hot oil temperature control unit (300 – 350 °C) provides precise thermal regulation and stable heat transfer for demanding industrial processes such as die casting, extrusion, and chemical production.
