Oil temperature control unit 1.5Pump pressure - High temperature LEOT series(300-350℃)-10-12

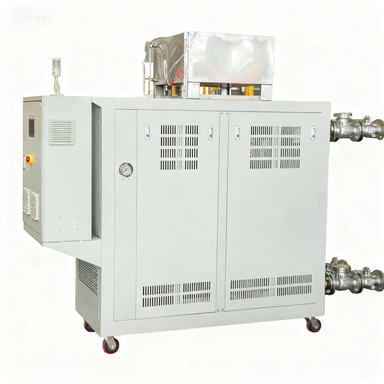

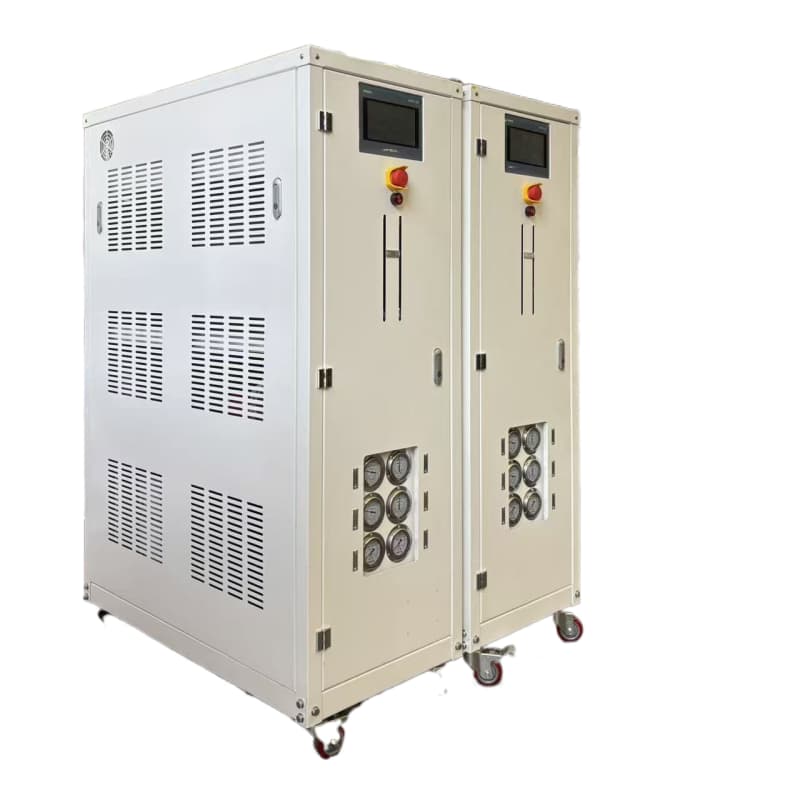

LEOT Series Oil Temperature Control Unit



The LEOT Series high-temperature oil temperature controller, the high-temperature circulating heat transfer oil enters the temperature control machine. The machine heats or cools the heat transfer oil according to the set temperature, and then the high-temperature oil pump delivers it to the pipeline inlet of the application equipment, thereby achieving the purpose of constant temperature control.



Oil Temperature Control Unit Working Principle

LEOT series oil temperature control unit (TCU) adopts an integrated "heating-circulation-temperature control" design, with core components including high-efficiency heating tubes, high-temperature-resistant circulation pumps, precision thermostats, and safety protection systems:



• The heating tubes are made of stainless steel, featuring rapid temperature rise and anti-aging properties;
• The circulation pumps ensure efficient flow of thermal oil in closed pipelines, realizing uniform heat transfer and avoiding local temperature differences;
• The temperature control system supports PID intelligent adjustment, with a temperature control accuracy of ±1℃, meeting the requirements of high-precision production scenarios.



In application scenarios, high-temperature oil temperature controllers can provide customized temperature control solutions for different processes:

• For example, in plastic molding, they can precisely control the mold temperature, improving the surface finish of plastic parts and molding efficiency;
• In the hot-pressing process of composite materials, they can stably maintain the temperature of hot-pressing molds, ensuring the curing quality of products;
• In the heating of chemical reaction kettles, they can achieve stable control of reaction temperature, preventing reaction effects from being affected by temperature fluctuations.



In addition, some models support intelligent remote monitoring and data recording functions, which facilitate enterprises to grasp the operating status of the device in real time, optimize production processes, and reduce operation and maintenance costs. It is a key temperature control device for improving efficiency and ensuring product quality in modern industrial production.



Safety Protection Function

The oil temperature control unit is equipped with multiple built-in safety protection mechanisms, including over-temperature alarm, oil shortage protection, abnormal pressure protection, and overload protection. These mechanisms effectively prevent risks such as dry burning of the device and pipeline leakage, ensuring production safety.





Features

Temperature control range:nlet water temperature+45℃-300℃Retum oil temperature gauge

Heating power change-over functionStart-up automatic exhaust function

Hot oil BY-PASS pressure relief loop

Stainless steel pipeline to reduce pipe resistance and rust deposit

Brands of electrical appliances:SIEMENS.OMRON.FUJ.ABB.Schneider

Disconnecting control box for electrical equipment to prolong service life if theelectrical equipment

Multi-point temperature control unit(customized)

Oil pump horsepower and heating power(customized)

Explosion-proof equipment(optional)

Air blowing and return oil function(optional)

Negative pressure system operation(optional)

Instant cooling shut-down function(optional)

RS485 communication function, realization of automatic management(optional)

Control method:imported microcomputer or PLC (optional) control

Perfect safety protection, fault display, maintenance without professionals

Model And Technical Parameter

Note: The specification is subject to change due to product improvement without prior notice.

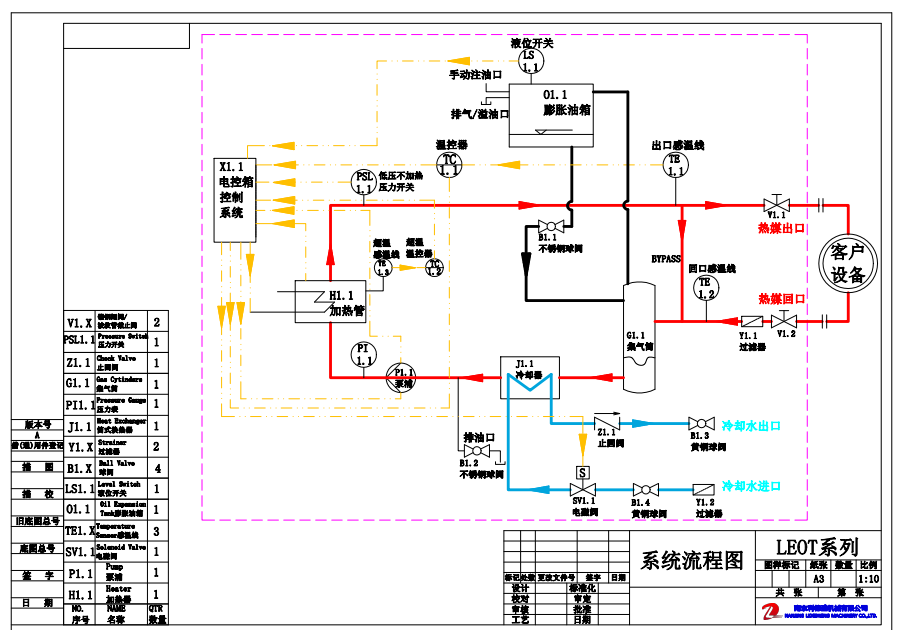

Process Flow Diagram

Application Case

Our oil temperature control unit is widely used across various industrial applications, including casting moulds, rubber vulcanization, wheel temperature control, hot press technology, carbon fiber production, and chemical reactions. It ensures precise temperature management, improving production efficiency and product quality in these processes.
